Application: It is used for grain storage, such as rice, wheat, corn, soybean, rapeseed, and other raw materials. It is essential equipment for the feed pellet plant, grain storage, grain factory, etc.

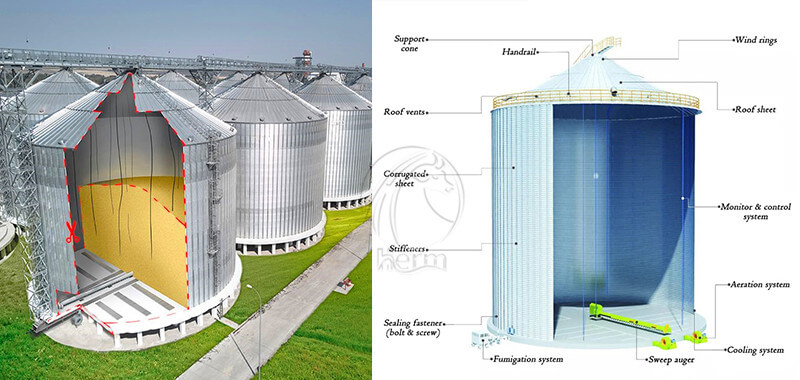

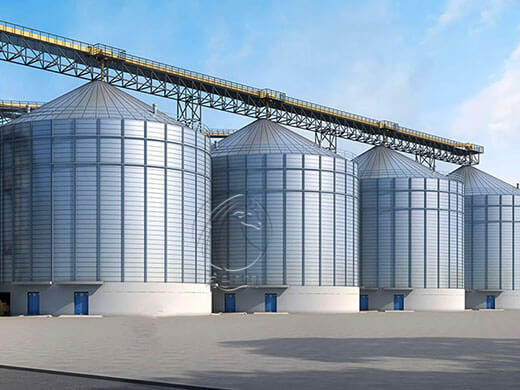

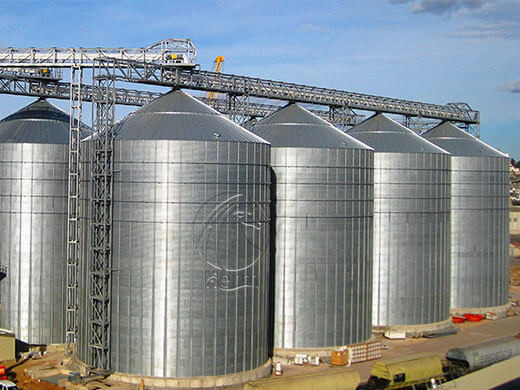

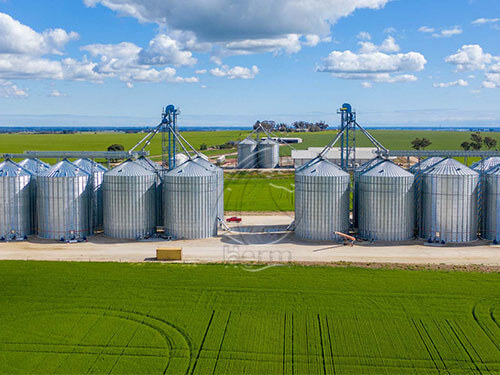

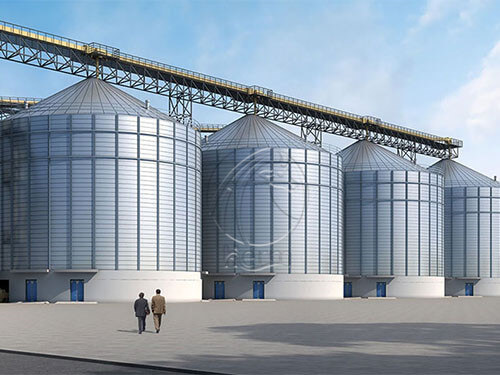

Flat bottom silo, is also called flat bottom bins or farm silo. It is designed for agricultural, industrial, commercial, and strategic applications such as large farms, inland storage facilities, grain terminals, grain-based factories such as flour mills, feed mills, rice mills, oil mills, and biofuel facilities.
Flat bottom silo, is also called flat bottom bins or farm silo. It is designed for agricultural, industrial, commercial, and strategic applications such as large farms, inland storage facilities, grain terminals, grain-based factories such as flour mills, feed mills, rice mills, oil mills, and biofuel facilities. They can be used for short and long-term storage of grains, corn, soybeans, rice, oilseeds, and any other granular free-flowing material.
Our silo sheet of the drum wall is made of high-quality hot-dip galvanized steel. Our grain bins are also equipped with a scraper, belt conveyor storage system, cleaning and removing impurities, magnetic separation and iron removal, temperature measurement system, ventilation system, material change warehouse, and many other functions.
2. Special silos available to suit customers’ applications – standard and bespoke range.
3. All flat bottom silos include a cylinder access door and roof inspection hatch as standard – additional doors can be installed.
4. Silos are manufactured using high-grade S450 steel, protected by galvanizing to Z600 standard giving superior strength to weight characteristics and extremely long service life.
5. All silos are designed for high cyclic loading – high usage of the product in and out at high tonnage rates.
6. A unique single-piece roof design is used on silos up to 16m diameter – simplifying installation and enhancing performance.
9. Optimised design of wall stiffeners and steelwork.
10. Round flat bottom silo capacities from 1500 to 30,000 tonnes based on wheat at 750kg/m³.
11. 30-degree pitched roof, which provides integrity while maintaining low overall heights for conveyors & elevators and matches the natural angle of repose for stored materials.
12. Standard flat bottom silos range from 3m diameter (15 tonnes storage) to 32m diameter (20,000 tonnes storage).
13. Custom diameters available to suit existing bases if replacing an end-of-life silo.

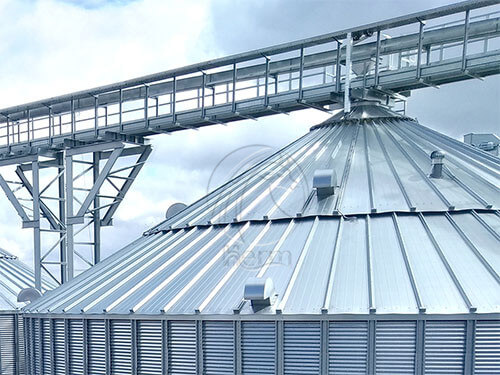

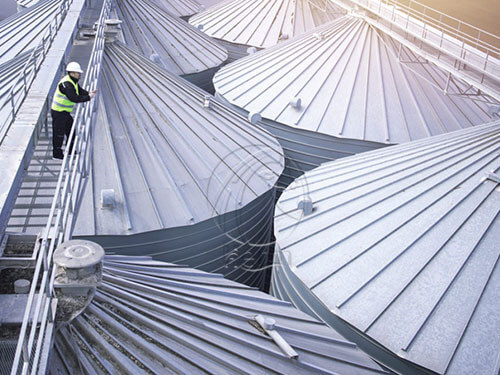

The angle of the silo roof is generally designed to be 25 degrees to 30 degrees. This design can ensure the best structural strength of the silo rack, thereby maximizing the structure and safety of the silo. The silo roof adopts the strong interconnection design of the silo roof, the lower ring beam structure, and the side rib structure with the top cover plate so that the silo can withstand the worst of the silo load, the construction load on the top of the silo, and even the extreme snow load, and another extreme environment.

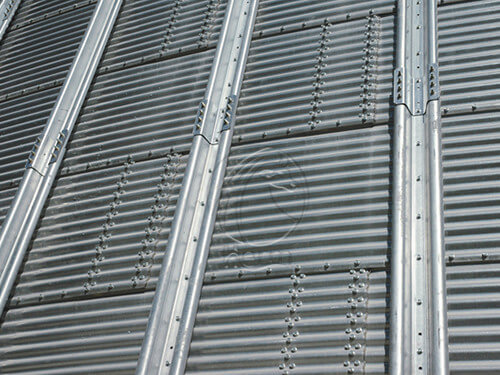

Stiffeners
Our silos are all made of high-tensile external reinforcement profiles to strengthen the entire silo body structure so that the silo can stand well even in extreme environments. And all reinforcing ribs are all galvanized to ensure that they will not rust for a long time.

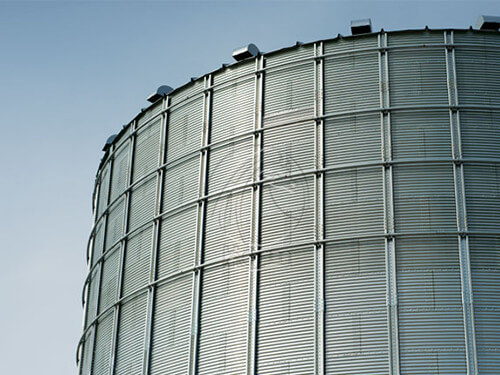

Wind Ring
The air ring is mainly used to increase the strength of the hopper silo. For the tall hopper silo or the silo in a strong wind position, the air ring can effectively strengthen the load-bearing of the hopper silo, thereby effectively ensuring the firmness and safety of the silo.

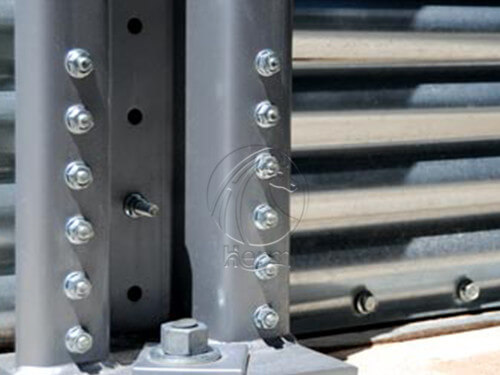

High Strength Bolts
Our silos are all made of high-strength galvanized bolts, with nuts, sealing washers, and the use of sealant between the steel plates, which perfectly guarantees the sealing and firmness of the silos.

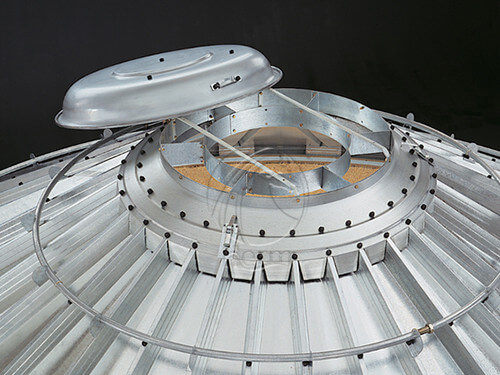

Manhole
Our silos generally provide two manholes. The first is usually located on the top of the bin for access from the top of the bin, and the other is usually located on the second bottom ring for workers to enter for clean-up or maintenance operations.

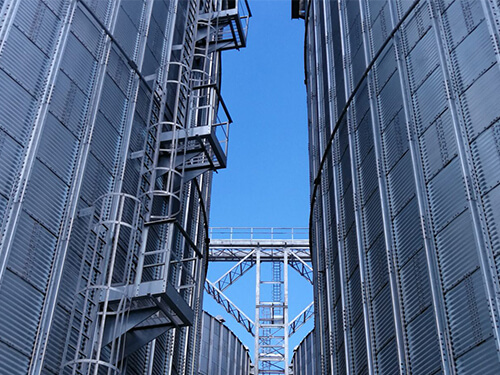

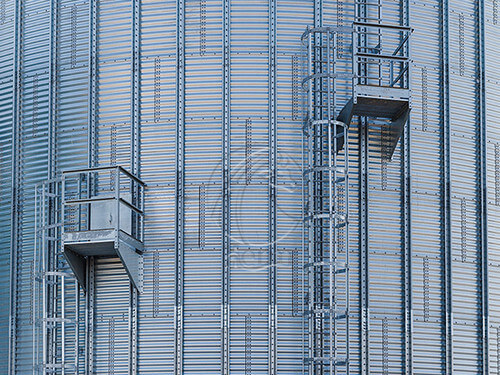

Ladder System & Rest Platforms
The ladders and rest platforms inside and outside the hopper silo are produced entirely in modular form by painted or galvanized sheets. The silo exterior safety ladder with a cage allows workers to reach the roof safely.
Base Angel and Anchoring
The rolled structural base angle prevents water from entering the base of the bin for improved protection.
Silo Bottom Secondary Waterproof
The bottom is made of polymer waterproof material for secondary waterproofing.
